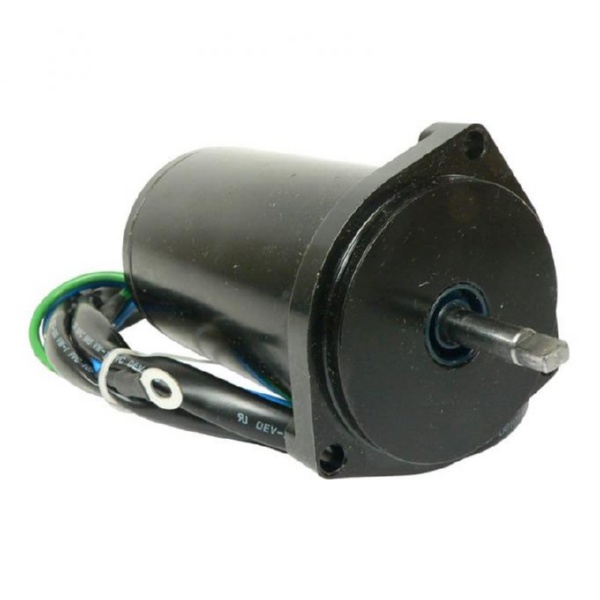

TRIM MOTOR FOR F50HP-F60HP (2005 & Later)
Replaces: 6C5-43880-01-00, 6C5-43880-00-00
Description: Tilt/Trim Motor
OEM(s): Yamaha
Voltage: 12
Condition: New
Rotation: Reversible
OD: 2.52in / 64mm
Shaft OD: 0.315in / 8mm
Length: 5.78in / 146.8mm
Terminal 1 Size: 6.5
Terminal 2 Size: 6.5
Shaft: Slotted
Current Type: DC
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60JB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60JA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60JB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60JB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2005 T60TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2005 T50TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP F50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60LA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 50HP T50LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60JA Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP T60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2005 F60TJRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2005 F60TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TJRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60TLR Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2005 F50TLRD Power Trim & Tilt Assy 2
Yamaha Outboard Parts by HP 60HP F60LB Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0406 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0405 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0509 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0405 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60LB 0115 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0407 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50LB 0113 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0408 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60LB 0114 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0410 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0408 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0406 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0408 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0406 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0407 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60LB 0113 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50LA 0412 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0410 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60JB 0113 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60JA 0412 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0411 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0410 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0411 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0410 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60JA 0112 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0509 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0411 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60JB 0115 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60JB 0114 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50LB 0115 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0411 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0509 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50LB 0115 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50LB 0114 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0407 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60TLR 0405 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0509 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0410 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0406 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60LA 0112 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60LA 0112 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50LA 0112 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60LB 0115 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60LB 0114 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0509 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50LB 0113 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0406 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50LB 0114 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50LA 0112 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60LA 0412 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50LA 0412 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP T60LB 0113 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0408 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP T50TLR 0408 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0407 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 50HP F50TLR 0405 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TJR 0411 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0405 Power Trim & Tilt Assy 2
Yamaha Outboard Parts by Year 2006 And Later 60HP F60TLR 0407 Power Trim & Tilt Assy 2
