TRIM MOTOR FOR 40HP-50HP-55HP-
60HP-70HP-75HP-90HP 3WIRES 1984-1991
Replaces: 6H1-43880-00-00

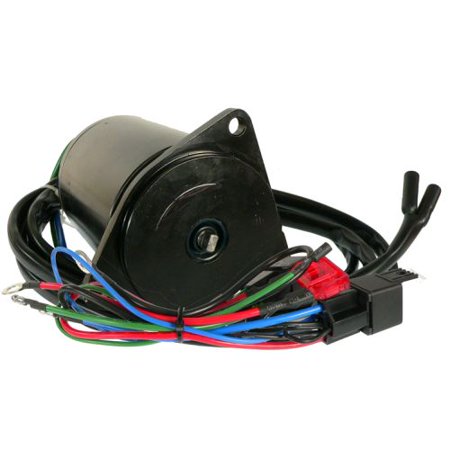

Description: Tilt/Trim Motor
Critical Notes:
Two-Wire Replacement For Three-Wire OE Unit
Verify Registration OD & Shaft Tang Dimensions
OEM(s): Yamaha
Voltage: 12
Condition: New
Rotation: Reversible
OD: 3.059in / 77.7mm
Shaft OD: 0.311in / 7.9mm
Length: 5.02in / 127.5mm
Terminal 1 Size: Butt Connector
Terminal 2 Size: Butt Connector
Shaft: 4mm W x 5.5mm H Tang
Current Type: DC
Notes:
70.7mm Registration OD
Includes O-Ring
Includes Harness With 32V/30A Fuse & (2) 12V 20A/30A Relay
